Task 4: Task Distributor Guide

Overview

This document covers the complete setup, and configuration for our system based on Task Distributor to demonstrate Amdahl's Law and Gustafson's Law on our Raspberry Pi cluster.

Task Distributor is a bash-based parallel image rendering tool that splits a POV-Ray render job across multiple cluster nodes. The scene file used is blob.pov — a built-in POV-Ray mathematical 3D scene (a metaball/blob shape) that ships with the povray-examples package. No custom image is needed; POV-Ray generates the PNG from the scene description. Each worker renders a horizontal strip of the final image, making it ideal for demonstrating parallel computing laws.

System Architecture

Component	Hardware	IP	Role
Master	Raspberry Pi 5 (8GB)	192.168.1.50	NFS Server, Job Coordinator
Worker 1	Raspberry Pi 3 B+	192.168.1.58	POV-Ray Renderer
Worker 2	Raspberry Pi 3 B+	192.168.1.54	POV-Ray Renderer
Worker 3	Raspberry Pi 3 B+	192.168.1.104	POV-Ray Renderer
Worker 4	Raspberry Pi 3 B+	192.168.1.136	POV-Ray Renderer
Worker 5	Raspberry Pi 3 B+	192.168.1.86	POV-Ray Renderer
Worker 6	Raspberry Pi 3 B+	192.168.1.117	POV-Ray Renderer
Worker 7	Raspberry Pi 3 B+	192.168.1.83	POV-Ray Renderer
Worker 8	Raspberry Pi 3 B+	192.168.1.133	POV-Ray Renderer

Workers are diskless PXE-boot nodes — they boot their entire OS from the master's SSD over NFS. All software installations must go through the master.

How Task Distributor Works

Master Node
    │
    ├── Creates lockfile on shared NFS path
    ├── SSHs into each worker node in parallel
    │       Each worker:
    │         1. Renders its assigned rows using POV-Ray
    │         2. Crops its image strip using ImageMagick
    │         3. Saves strip to shared NFS folder
    │         4. Writes its IP into the lockfile
    ├── Master waits until all IPs appear in lockfile
    └── Master assembles all strips into final image

The image is split by rows. For N nodes, each node renders 1/N of the total rows. The sequential portions are lockfile creation and final image assembly.

Setup Guide (Quick Reference)

1. Boot Sequence

# Always boot master first, then workers
systemctl is-active dnsmasq nfs-kernel-server  # must both be active

2. Clone and Configure

cd ~
git clone https://github.com/christianbaun/task-distributor.git
cd task-distributor

# Update hardcoded hostnames to your worker IPs (line 67)
sed -i 's/HOSTS_ARRAY=(\[1\]=pi110 pi111 pi112 pi113 pi114 pi115 pi116 pi117)/HOSTS_ARRAY=([1]=192.168.1.58 192.168.1.54 192.168.1.104 192.168.1.136 192.168.1.86 192.168.1.117 192.168.1.83 192.168.1.133)/' \
  ~/task-distributor/task-distributor-master.sh

# Fix ImageMagick binary (Pi5 uses v7, not v6)
sed -i 's|/usr/bin/convert-im6.q16|/usr/bin/convert-im7.q16|g' \
  ~/task-distributor/task-distributor-master.sh

3. Install Dependencies on Workers

# Install via chroot (affects shared rootfs for all workers)
sudo chroot /nfs/rootfs64 /bin/bash -c \
  "apt-get update && apt-get install -y povray povray-examples imagemagick bc"

# Create and export shared workspace
sudo mkdir -p /mnt/ssd/nfs/hpl-results/task-distributor/workspace_{2n,4n,8n}
echo "/mnt/ssd/nfs/hpl-results 192.168.1.0/24(rw,sync,no_subtree_check,no_root_squash)" \
  | sudo tee -a /etc/exports
sudo exportfs -ra

# Fix permissions so workers (pi user) can write
sudo chmod -R 777 /mnt/ssd/nfs/hpl-results/task-distributor/

# Mount on all workers
for ip in 192.168.1.58 192.168.1.54 192.168.1.104 192.168.1.136 \
          192.168.1.86 192.168.1.117 192.168.1.83 192.168.1.133; do
  ssh -i ~/.ssh/id_ed25519 pi@$ip \
    "sudo mkdir -p /mnt/ssd/nfs/hpl-results && \
     sudo mount -o rw,soft,nolock 192.168.1.50:/mnt/ssd/nfs/hpl-results /mnt/ssd/nfs/hpl-results"
done

4. Deploy Worker Script

# SCP the modified worker script to all workers
for ip in 192.168.1.58 192.168.1.54 192.168.1.104 192.168.1.136 \
          192.168.1.86 192.168.1.117 192.168.1.83 192.168.1.133; do
  scp -i ~/.ssh/id_ed25519 \
    ~/task-distributor/task-distributor-worker.sh \
    pi@$ip:/home/pi/task-distributor-worker.sh
done

Key modifications to the worker script: - Use TERM=dumb before POV-Ray to suppress terminal errors over SSH - Write worker IP (not hostname) to lockfile so master can match it - Use full path /usr/bin/povray and /usr/bin/convert-im6.q16

Experiment 1: Amdahl's Law

Theory

Amdahl's Law states that the speedup from parallelisation is limited by the sequential fraction of the program:

Speedup(N) = 1 / (S + (1-S)/N)

Where S = sequential fraction, N = number of processors.

Approach: Keep the image size fixed at 320×240. Vary the number of nodes (1, 2, 4, 8). Measure how much faster the parallel portion completes.

Benchmark Commands

cd ~/task-distributor

# 1-node baseline
./task-distributor-master.sh -n 1 -x 320 -y 240 \
  -p /mnt/ssd/nfs/hpl-results/task-distributor/workspace_2n \
  -f -c | tee /mnt/ssd/nfs/hpl-results/task-distributor/amdahl_1node.txt

# 2-node run
./task-distributor-master.sh -n 2 -x 320 -y 240 \
  -p /mnt/ssd/nfs/hpl-results/task-distributor/workspace_2n \
  -f -c | tee /mnt/ssd/nfs/hpl-results/task-distributor/amdahl_2nodes.txt

# 4-node run
./task-distributor-master.sh -n 4 -x 320 -y 240 \
  -p /mnt/ssd/nfs/hpl-results/task-distributor/workspace_4n \
  -f -c | tee /mnt/ssd/nfs/hpl-results/task-distributor/amdahl_4nodes.txt

# 8-node run
./task-distributor-master.sh -n 8 -x 320 -y 240 \
  -p /mnt/ssd/nfs/hpl-results/task-distributor/workspace_8n \
  -f -c | tee /mnt/ssd/nfs/hpl-results/task-distributor/amdahl_8nodes.txt

Alternatively you can also use the run_task_distributor.sh script

Usage

./run_task_distributor.sh <nodes> <x_res> <y_res> <workspace_dir> <setup_flag> <runs>

Example

./run_task_distributor.sh 8 1600 1200 /mnt/ssd/nfs/hpl-results/task-distributor/workspace_8n no 8

Single-Run Results (Empirical — Measured on Physical Cluster)

Nodes	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.004s	4.018s	0.005s	4.027s
2	0.004s	3.018s	0.035s	3.057s
4	0.004s	3.028s	0.037s	3.069s
8	0.004s	4.056s	0.037s	4.097s

Speedup Analysis (Single Run)

Nodes	Total Time	Observed Speedup	Theoretical Speedup (S=0.002)
1	4.027s	1.00x (baseline)	1.00x
2	3.057s	1.32x	1.99x
4	3.069s	1.31x	3.97x
8	4.097s	0.98x	7.84x

Experiment 2: Gustafson's Law

Theory

Gustafson's Law addresses Amdahl's pessimism by noting that in practice, larger problems benefit more from parallelism:

Scaled Speedup(N) = N - S × (N - 1)

Approach: Scale the image size proportionally with the number of nodes, keeping the work per node constant (each node always renders 120 rows).

Nodes	Image Size	Rows per Node
1	160×120	120 rows
2	160×240	120 rows each
4	160×480	120 rows each
8	160×960	120 rows each

Single-Run Results (Empirical — Measured on Physical Cluster)

Nodes	Image Size	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	160×120	0.004s	3.014s	0.006s	3.024s
2	160×240	0.004s	3.019s	0.034s	3.057s
4	160×480	0.004s	3.030s	0.044s	3.078s
8	160×960	0.004s	4.063s	0.088s	4.155s

Troubleshooting Reference

Problem	Cause	Fix
`ssh: No route to host`	Workers not booted	Follow golden boot sequence
`Could not resolve hostname pi110`	Hardcoded hostnames in script	Update `HOSTS_ARRAY` in master script
`lockfile already exists`	Previous run failed	`rm -f workspace_*/lockfile`
`Permission denied on workspace`	Workers (pi user) can't write to cc123 folder	`sudo chmod -R 777 /mnt/ssd/nfs/hpl-results/task-distributor/`
`convert: command not found`	Wrong ImageMagick binary name	Use `convert-im6.q16` on workers, `convert-im7.q16` on master
`Error opening terminal: unknown`	POV-Ray needs TTY	Add `TERM=dumb` before povray command
`No such file or directory: blob.png`	POV-Ray not rendering	Check `TERM=dumb` and correct `+I` path
`pi.png: No such file`	Master looking for wrong filename	Worker writes IP.png not hostname.png
Workers write wrong name to lockfile	Script uses `hostname`	Change to `hostname -I \\| awk '{print $1}'`

File Locations

~/task-distributor/
├── task-distributor-master.sh    # Modified master script
└── task-distributor-worker.sh    # Modified worker script
└── gustafsons_results            # results in csv
└── amdahl_results                # in the format results_[WxH]_[count_of_nodes]_nodes.csv

/mnt/ssd/nfs/hpl-results/task-distributor/
├── amdahl_1node.txt              # Amdahl 1-node logs
├── amdahl_2nodes.txt             # Amdahl 2-node logs
├── amdahl_4nodes.txt             # Amdahl 4-node logs
├── amdahl_8nodes.txt             # Amdahl 8-node logs
├── gustafson_1node.txt           # Gustafson 1-node logs
├── gustafson_2nodes.txt          # Gustafson 2-node logs
├── gustafson_4nodes.txt          # Gustafson 4-node logs
├── gustafson_8nodes.txt          # Gustafson 8-node logs
├── workspace_2n/                 # 2-node workspace
├── workspace_4n/                 # 4-node workspace
└── workspace_8n/                 # 8-node workspace

You can also find some logs in the benchmark folder

Issues and Fixes

Memory issues

These occur for larger image sizes 6400 x 4800 especially if the number of nodes are less. We added a storage space for workers for support via changes to task-distributor-worker.sh. The script uses a storage space for each worker if the size exceeds 3200 x 2400. All the 6400 x H results were obtained after this updated.

Unordered composed image

Added a fix where the image composed of image cuts generated by worker hosts produce an unordered image

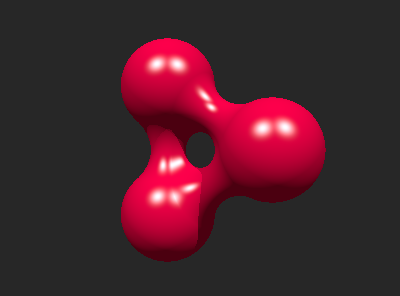

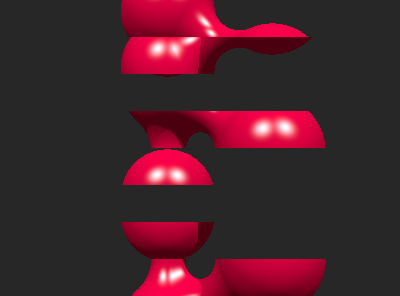

Before After

Failed runs

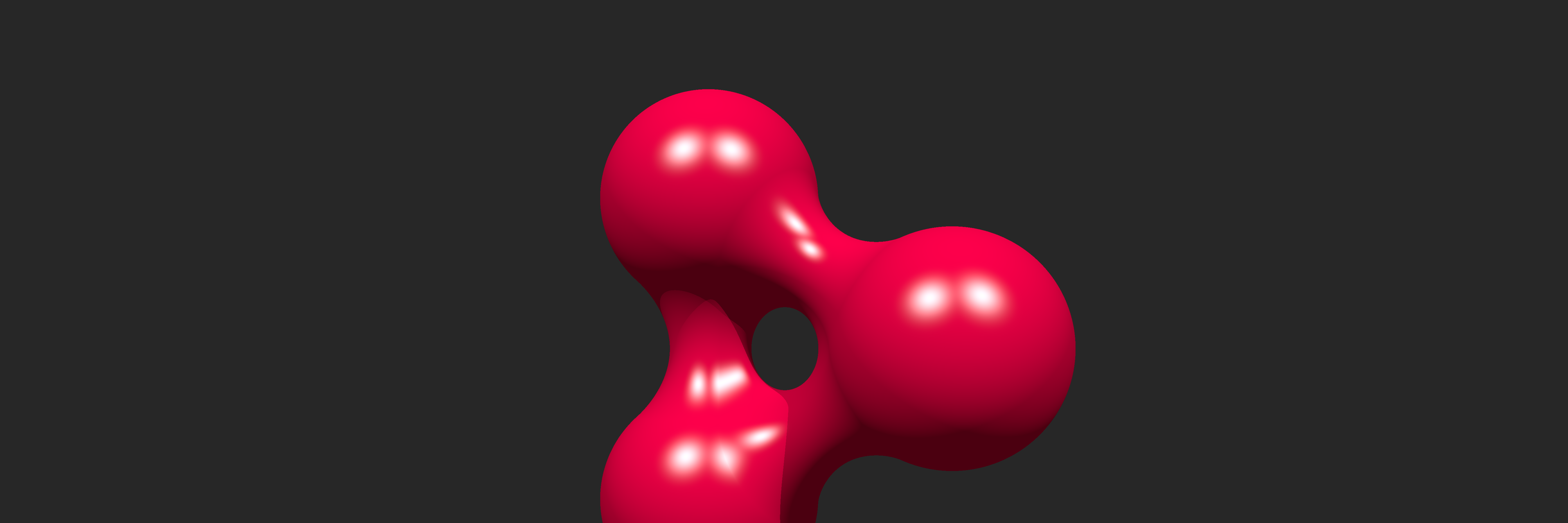

5400x2400 / 4 nodes

5400x2400_4_nodes

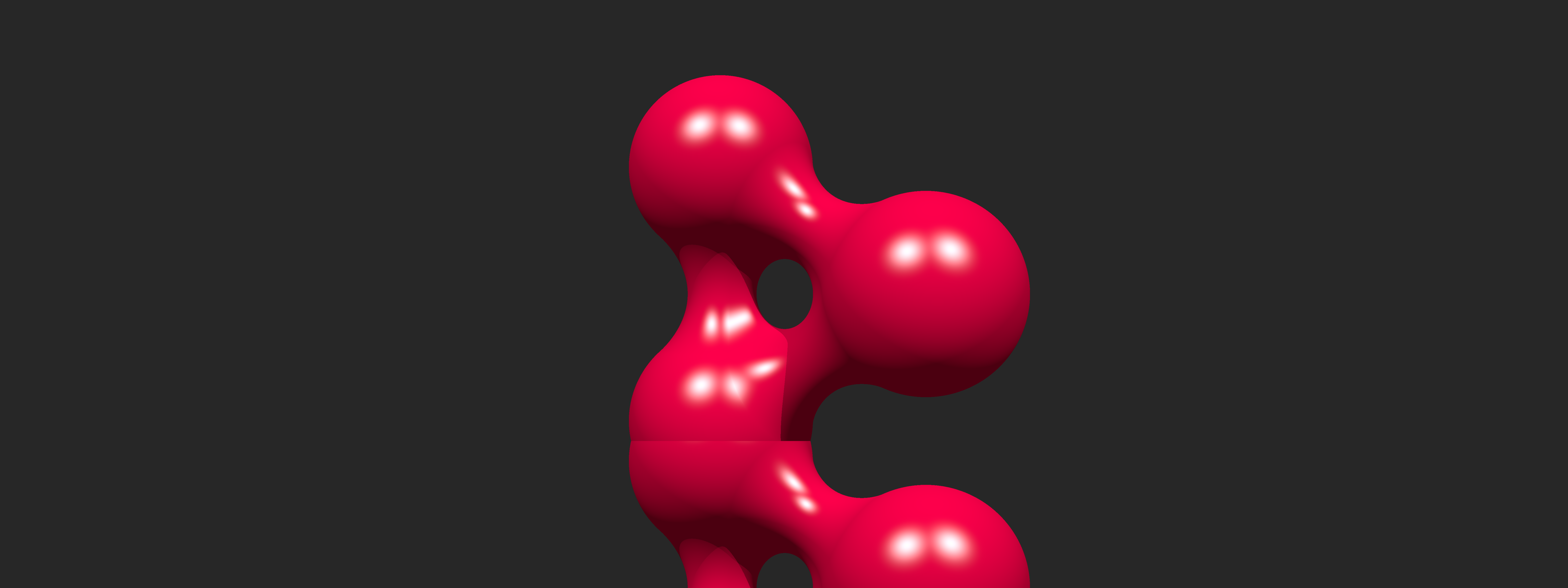

6400x2400 / 4 nodes

6400x2400_4_nodes

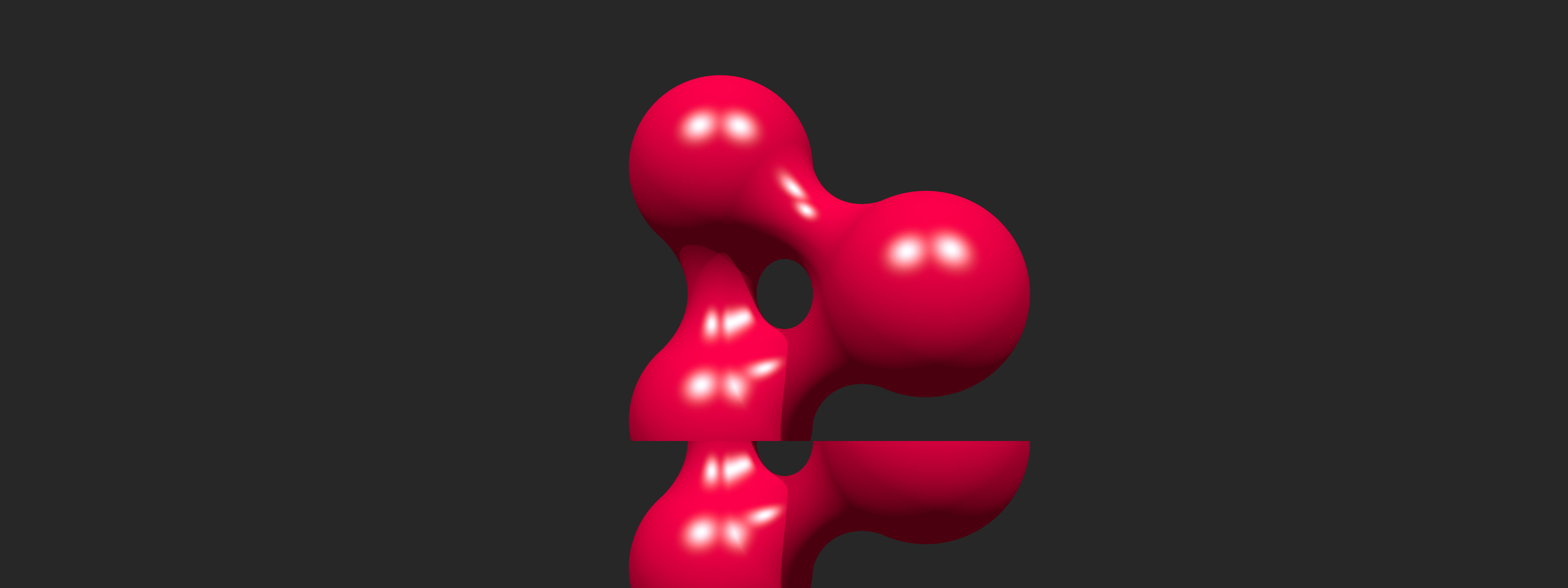

6400x2400 / 4 nodes

6400x2400_4_nodes
