Task 4: Non-MPI Scaling Laws (Task Distributor)

Overview

This document covers the results and findings of Task Distributor experiments, which we used to demonstrate Amdahl's Law and Gustafson's Law on our Raspberry Pi cluster.

Task Distributor is a bash-based parallel image rendering tool that splits a POV-Ray render job across multiple cluster nodes. The scene file used is blob.pov — a built-in POV-Ray mathematical 3D scene (a metaball/blob shape) that ships with the povray-examples package. No custom image is needed; POV-Ray generates the PNG from the scene description. Each worker renders a horizontal strip of the final image, making it ideal for demonstrating parallel computing laws.

Experiment 1: Amdahl's Law — 5 Runs × 6 Workloads

200 x 150 — 5 Runs Per Node Configuration

1 Nodes — 200x150

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.012s	4.019s	0.012s	4.043s
2	0.003s	2.012s	0.006s	2.021s
3	0.004s	3.020s	0.007s	3.031s
4	0.004s	3.013s	0.007s	3.024s
5	0.004s	3.015s	0.005s	3.024s
AVG	0.005s	3.015s	0.007s	3.027s

2 Nodes — 200x150

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	3.018s	0.023s	3.044s
2	0.003s	2.014s	0.024s	2.041s
3	0.003s	2.013s	0.022s	2.038s
4	0.003s	2.013s	0.021s	2.037s
5	0.003s	2.019s	0.023s	2.045s
AVG	0.003s	2.215s	0.022s	2.240s

4 Nodes — 200x150

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	2.026s	0.023s	2.052s
2	0.003s	2.030s	0.023s	2.056s
3	0.003s	2.026s	0.024s	2.053s
4	0.003s	2.026s	0.031s	2.060s
5	0.005s	2.033s	0.031s	2.069s
AVG	0.003s	2.028s	0.026s	2.057s

8 Nodes — 200x150

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	2.045s	0.024s	2.072s
2	0.003s	2.058s	0.041s	2.102s
3	0.003s	2.050s	0.025s	2.078s
4	0.003s	2.049s	0.025s	2.077s
5	0.003s	2.052s	0.035s	2.090s
AVG	0.003s	2.050s	0.030s	2.083s

1 Nodes — 400x300

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	2.009s	0.004s	2.016s
2	0.003s	2.009s	0.004s	2.016s
3	0.004s	3.013s	0.005s	3.022s
4	0.003s	2.009s	0.004s	2.016s
5	0.003s	2.009s	0.006s	2.018s
AVG	0.003s	2.209s	0.004s	2.216s

2 Nodes — 400x300

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	3.020s	0.047s	3.070s
2	0.003s	3.017s	0.052s	3.072s
3	0.003s	2.014s	0.045s	2.062s
4	0.003s	3.017s	0.048s	3.068s
5	0.003s	3.016s	0.067s	3.086s
AVG	0.003s	2.816s	0.051s	2.870s

4 Nodes — 400x300

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.004s	2.025s	0.044s	2.073s
2	0.002s	2.025s	0.045s	2.072s
3	0.003s	2.036s	0.062s	2.101s
4	0.004s	2.025s	0.047s	2.076s
5	0.003s	3.029s	0.068s	3.100s
AVG	0.003s	2.228s	0.053s	2.284s

8 Nodes — 400x300

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.004s	2.043s	0.046s	2.093s
2	0.003s	2.042s	0.067s	2.112s
3	0.003s	2.047s	0.052s	2.102s
4	0.003s	2.044s	0.049s	2.096s
5	0.003s	2.052s	0.064s	2.119s
AVG	0.003s	2.045s	0.055s	2.103s

1 Nodes — 800x600

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	4.016s	0.007s	4.026s
2	0.004s	4.015s	0.004s	4.023s
3	0.003s	4.015s	0.006s	4.024s
4	0.004s	4.014s	0.005s	4.023s
5	0.003s	4.014s	0.007s	4.024s
AVG	0.003s	4.014s	0.005s	4.022s

2 Nodes — 800x600

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	4.018s	0.158s	4.179s
2	0.003s	4.017s	0.122s	4.142s
3	0.003s	4.018s	0.121s	4.142s
4	0.003s	3.018s	0.156s	3.177s
5	0.003s	3.020s	0.122s	3.145s
AVG	0.003s	3.618s	0.135s	3.756s

4 Nodes — 800x600

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	3.027s	0.126s	3.156s
2	0.004s	3.029s	0.153s	3.186s
3	0.003s	3.030s	0.127s	3.160s
4	0.003s	3.027s	0.148s	3.178s
5	0.003s	3.031s	0.133s	3.167s
AVG	0.003s	3.028s	0.137s	3.168s

8 Nodes — 800x600

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	3.058s	0.167s	3.228s
2	0.003s	3.052s	0.132s	3.187s
3	0.003s	3.056s	0.149s	3.208s
4	0.003s	3.058s	0.132s	3.193s
5	0.004s	3.059s	0.152s	3.215s
AVG	0.003s	3.056s	0.146s	3.205s

1 Nodes — 1600x1200

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.004s	11.032s	0.005s	11.041s
2	0.003s	10.030s	0.005s	10.038s
3	0.005s	9.027s	0.005s	9.037s
4	0.003s	10.029s	0.005s	10.037s
5	0.003s	10.032s	0.005s	10.040s
AVG	0.003s	10.030s	0.005s	10.038s

2 Nodes — 1600x1200

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	10.038s	0.403s	10.444s
2	0.003s	8.030s	0.355s	8.388s
3	0.003s	8.030s	0.356s	8.389s
4	0.003s	8.032s	0.372s	8.407s
5	0.007s	8.037s	0.389s	8.433s
AVG	0.003s	8.433s	0.375s	8.811s

4 Nodes — 1600x1200

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.004s	6.039s	0.442s	6.485s
2	0.003s	6.037s	0.453s	6.493s
3	0.003s	6.033s	0.500s	6.536s
4	0.003s	6.037s	0.479s	6.519s
5	0.003s	6.037s	0.451s	6.491s
AVG	0.003s	6.036s	0.465s	6.504s

8 Nodes — 1600x1200

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.004s	5.061s	0.447s	5.512s
2	0.003s	5.057s	0.466s	5.526s
3	0.003s	5.055s	0.496s	5.554s
4	0.004s	5.054s	0.473s	5.531s
5	0.004s	5.060s	0.481s	5.545s
AVG	0.003s	5.057s	0.472s	5.532s

1 Nodes — 3200x2400

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	45.117s	0.006s	45.126s
2	0.004s	51.140s	0.010s	51.154s
3	0.004s	52.158s	0.009s	52.171s
4	0.004s	54.139s	0.006s	54.149s
5	0.004s	53.154s	0.012s	53.170s
AVG	0.003s	51.141s	0.008s	51.152s

2 Nodes — 3200x2400

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	31.092s	1.223s	32.318s
2	0.003s	28.080s	1.280s	29.363s
3	0.003s	27.085s	1.324s	28.412s
4	0.003s	29.086s	1.143s	30.232s
5	0.003s	27.076s	1.152s	28.231s
AVG	0.003s	28.483s	1.224s	29.710s

4 Nodes — 3200x2400

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	18.063s	1.340s	19.406s
2	0.003s	20.073s	1.281s	21.357s
3	0.003s	18.063s	1.303s	19.369s
4	0.003s	18.068s	1.268s	19.339s
5	0.003s	18.066s	1.326s	19.395s
AVG	0.003s	18.466s	1.303s	19.772s

8 Nodes — 3200x2400

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	14.075s	1.602s	15.680s
2	0.003s	13.083s	1.875s	14.961s
3	0.003s	13.080s	1.619s	14.702s
4	0.003s	14.077s	1.579s	15.659s
5	0.003s	13.078s	1.599s	14.680s
AVG	0.003s	13.478s	1.654s	15.135s

1 Nodes — 6400x4800

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	s	s	s	0.000s
2	s	s	s	0.000s
3	s	s	s	0.000s
4	s	s	s	0.000s
5	s	s	s	0.000s
AVG	0.000s	0.000s	0.000s	0.000s

pi@worker1:~$ ls /tmp
pov16274  pov16686    systemd-private-aff2169b8e5a468f809d349af9090f28-ModemManager.service-31fSVJ
pov16525  pov16709    systemd-private-aff2169b8e5a468f809d349af9090f28-bluetooth.service-cAnUhH
pov16655  povraymessages  systemd-private-aff2169b8e5a468f809d349af9090f28-systemd-logind.service-rtsZrp
pi@worker1:~$ ls -l /tmp
total 464516
-rw------- 1 pi   pi   614400024 Jul 13 01:18 pov16274
-rw------- 1 pi   pi   614400024 Jul 13 01:54 pov16525
-rw------- 1 pi   pi   614400024 Jul 13 01:54 pov16655
-rw------- 1 pi   pi           0 Jul 13 01:54 pov16686
-rw------- 1 pi   pi           0 Jul 13 01:54 pov16709
-rw-r--r-- 1 pi   pi         331 Jul 13 01:54 povraymessages
drwx------ 3 root root        60 Nov 19  2024 systemd-private-aff2169b8e5a468f809d349af9090f28-ModemManager.service-31fSVJ
drwx------ 3 root root        60 Nov 19  2024 systemd-private-aff2169b8e5a468f809d349af9090f28-bluetooth.service-cAnUhH
drwx------ 3 root root        60 Nov 19  2024 systemd-private-aff2169b8e5a468f809d349af9090f28-systemd-logind.service-rtsZrp
pi@worker1:~$

More logs like this can be found in the task-dist-results.txt (note that those are not clean!)

2 Nodes — 6400x4800

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.005s	123.347s	4.707s	128.059s
2	0.004s	123.359s	4.313s	127.676s
3	0.003s	124.349s	4.338s	128.690s
4	0.003s	124.343s	4.498s	128.844s
5	0.003s	124.752s	4.248s	129.003s
AVG	0.003s	124.752s	4.420s	129.175s

4 Nodes — 6400x4800

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	137.411s	5.209s	142.623s
2	0.003s	210.612s	4.976s	215.591s
3	0.003s	135.408s	6.615s	142.026s
4	0.005s	166.494s	5.945s	172.444s
5	0.005s	213.610s	4.624s	218.239s
AVG	0.003s	172.707s	5.473s	178.183s

8 Nodes — 6400x4800

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	166.535s	6.572s	173.110s
2	0.003s	92.357s	7.702s	100.062s
3	0.007s	119.410s	6.373s	125.790s
4	0.006s	89.370s	7.904s	97.280s
5	0.004s	182.602s	6.804s	189.410s
AVG	0.004s	130.054s	7.071s	137.129s

Amdahl's Law — Summary Table (Averages of 5 Runs)

Workload	Nodes	Avg Seq 1	Avg Parallel	Avg Seq 2	Avg Total Time	Std Dev	Speedup	Efficiency
200x150	1	0.005s	3.015s	0.007s	3.027s	±0.71s	1.00x	100%
200x150	2	0.003s	2.215s	0.022s	2.240s	±0.45s	1.35x	68%
200x150	4	0.003s	2.028s	0.026s	2.057s	±0.01s	1.47x	37%
200x150	8	0.003s	2.050s	0.030s	2.083s	±0.01s	1.45x	18%
400x300	1	0.003s	2.209s	0.004s	2.216s	±0.45s	1.00x	100%
400x300	2	0.003s	2.816s	0.051s	2.870s	±0.45s	0.77x	39%
400x300	4	0.003s	2.228s	0.053s	2.284s	±0.46s	0.97x	24%
400x300	8	0.003s	2.045s	0.055s	2.103s	±0.01s	1.05x	13%
800x600	1	0.003s	4.014s	0.005s	4.022s	±0.00s	1.00x	100%
800x600	2	0.003s	3.618s	0.135s	3.756s	±0.54s	1.07x	54%
800x600	4	0.003s	3.028s	0.137s	3.168s	±0.01s	1.27x	32%
800x600	8	0.003s	3.056s	0.146s	3.205s	±0.02s	1.26x	16%
1600x1200	1	0.003s	10.030s	0.005s	10.038s	±0.71s	1.00x	100%
1600x1200	2	0.003s	8.433s	0.375s	8.811s	±0.91s	1.14x	57%
1600x1200	4	0.003s	6.036s	0.465s	6.504s	±0.02s	1.54x	39%
1600x1200	8	0.003s	5.057s	0.472s	5.532s	±0.02s	1.81x	23%
2000x1504	8	N/A	N/A	N/A	8.366s	±0.54s	N/A	N/A
3200x2400	1	0.003s	51.141s	0.008s	51.152s	±3.55s	1.00x	100%
3200x2400	2	0.003s	28.483s	1.224s	29.710s	±1.66s	1.72x	86%
3200x2400	4	0.003s	18.466s	1.303s	19.772s	±0.89s	2.59x	65%
3200x2400	8	0.003s	13.478s	1.654s	15.135s	±0.50s	3.38x	42%
6400x4800	1	0.000s	0.000s	0.000s	0.000s	±0.00s	N/A	N/A
6400x4800	4	0.003s	172.707s	5.473s	178.183s	±37.45s	N/A	N/A
6400x4800	8	0.004s	130.054s	7.071s	137.129s	±42.19s	N/A	N/A

Key insight: With smaller image size adding more nodes give diminishing or worse performance returns (e.g. 200x150 - [2, 4, 8]) probably because of the NFS overhead.

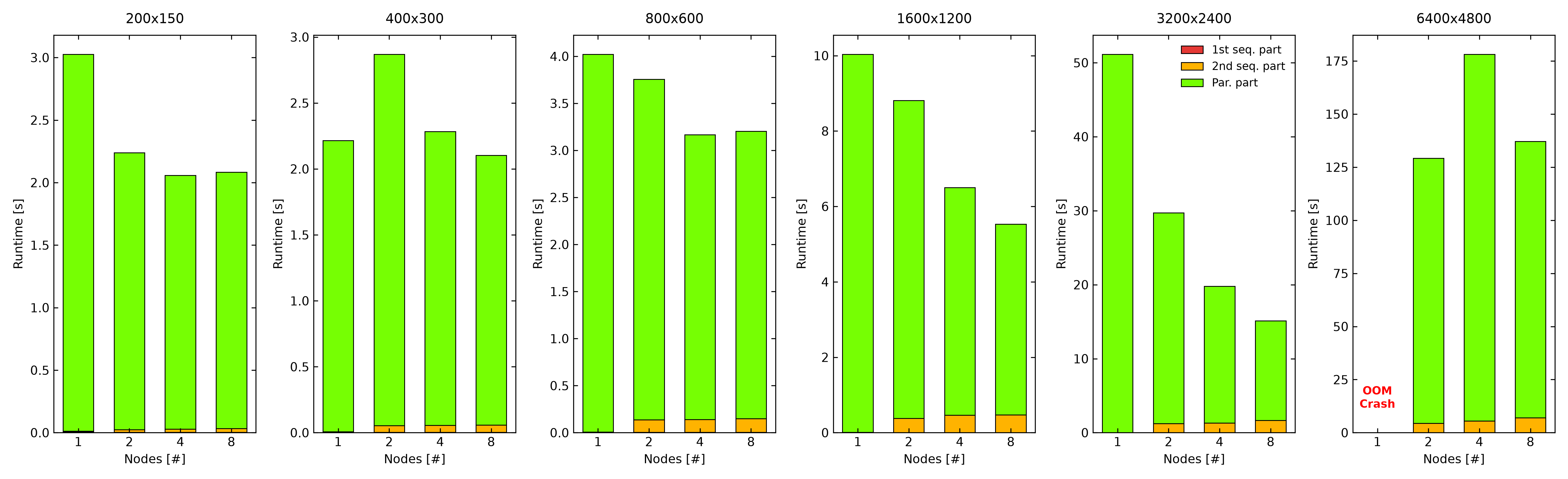

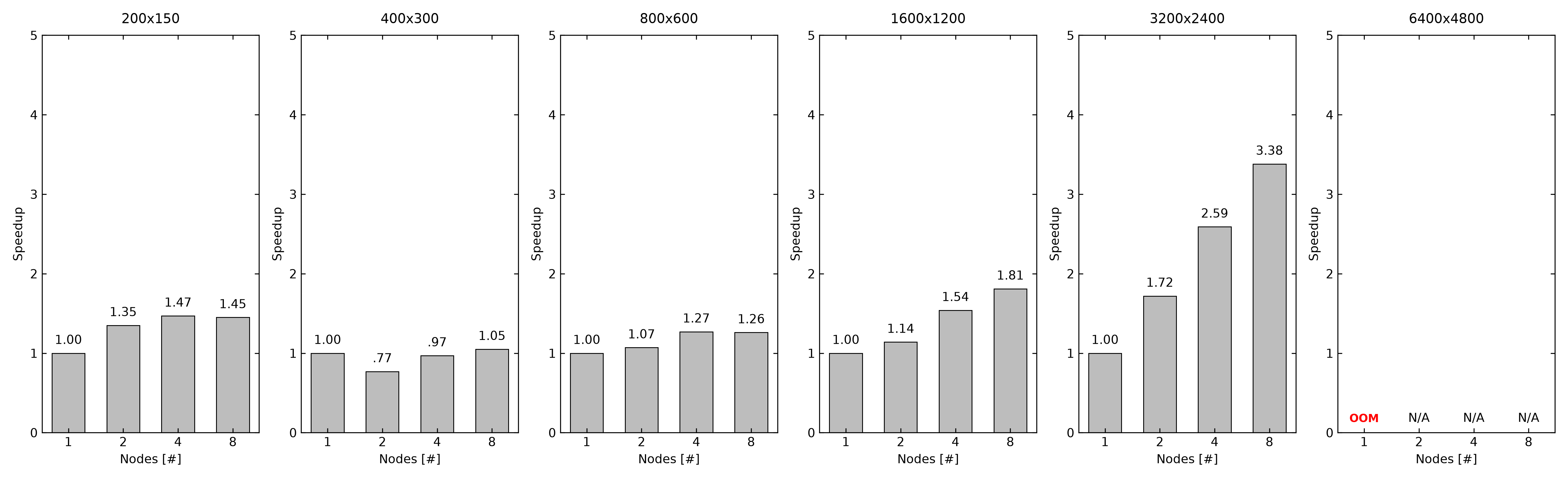

Amdahl's Law — Graphs

---

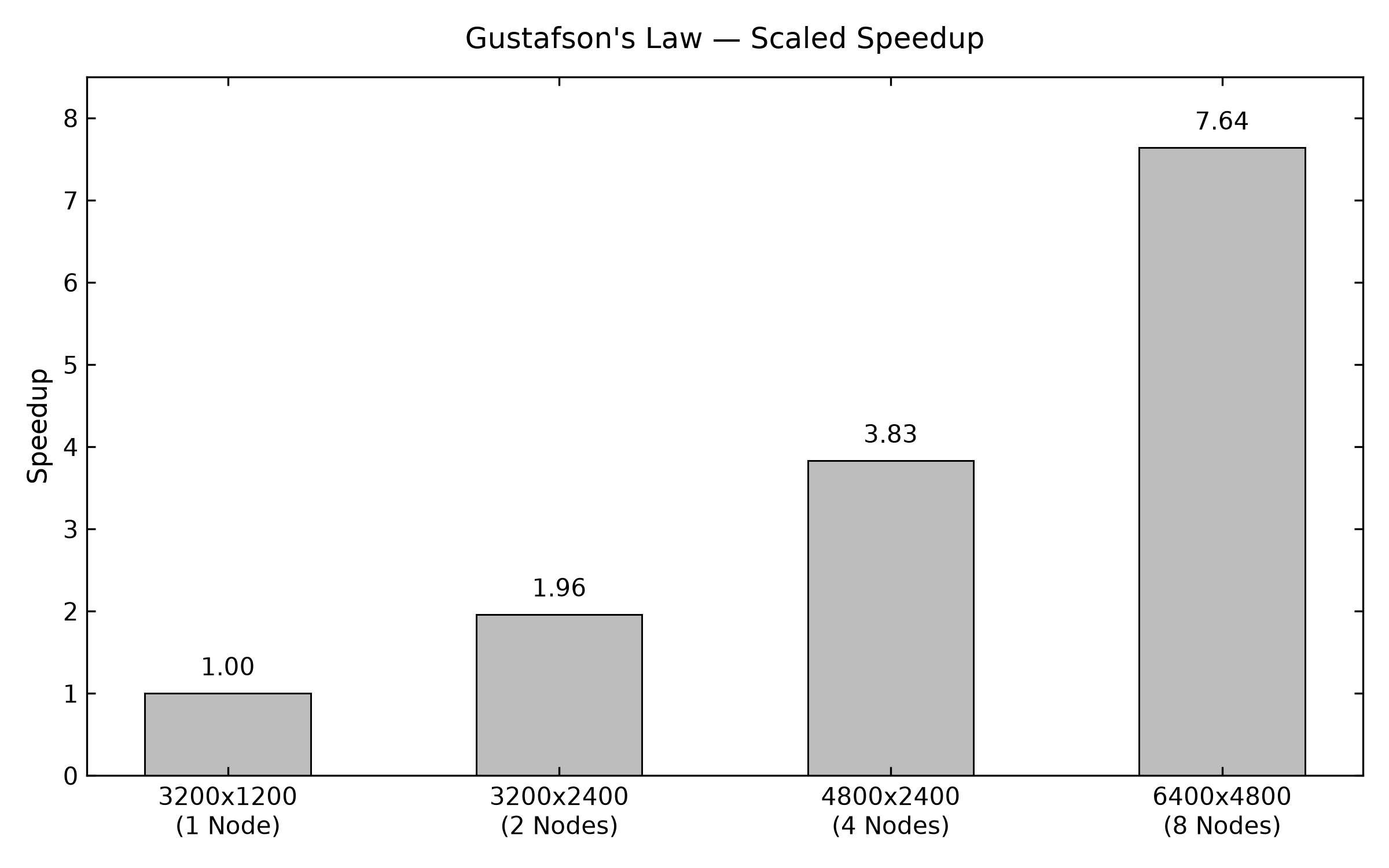

Experiment 2: Gustafson's Law

Theory

Gustafson's Law addresses Amdahl's pessimism by noting that in practice, larger problems benefit more from parallelism:

Scaled Speedup(N) = N - S × (N - 1)

Approach: Scale the image size proportionally with the number of nodes, keeping the work per node constant (each node always renders 120 rows).

Nodes	Image Size	Rows per Node
1	160×120	120 rows
2	160×240	120 rows each
4	160×480	120 rows each
8	160×960	120 rows each

Single-Run Results (Empirical — Measured on Physical Cluster)

Nodes	Image Size	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	160×120	0.004s	3.014s	0.006s	3.024s
2	160×240	0.004s	3.019s	0.034s	3.057s
4	160×480	0.004s	3.030s	0.044s	3.078s
8	160×960	0.004s	4.063s	0.088s	4.155s

---

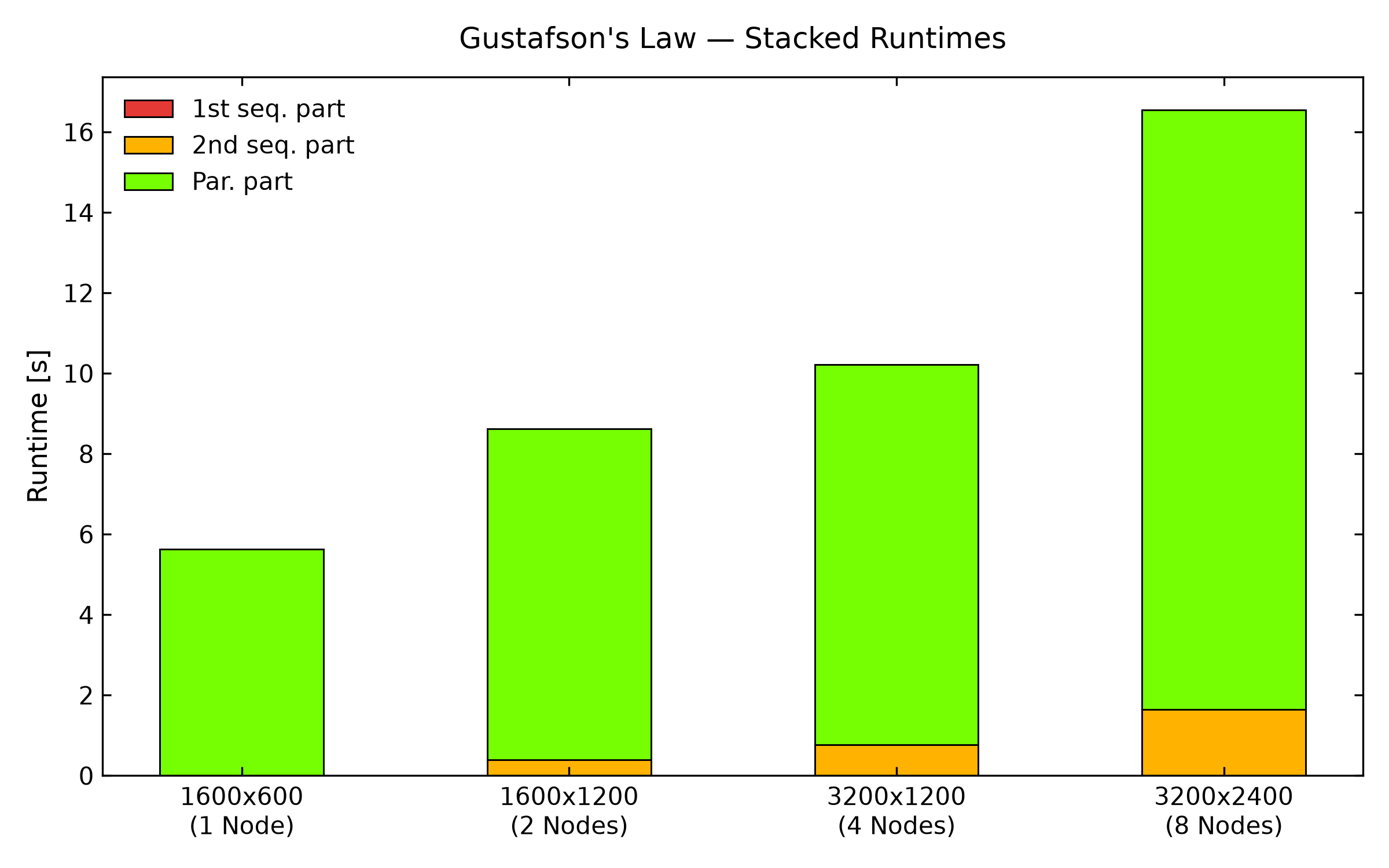

Experiment 2: Gustafson's Law — 5 Runs x Workfload Set 1

1600x600 / node Base — 5 Runs

1 Nodes — 1600x600

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.006s	7.025s	0.010s	7.041s
2	0.004s	6.021s	0.006s	6.031s
3	0.004s	5.018s	0.006s	5.028s
4	0.004s	5.018s	0.005s	5.027s
5	0.003s	5.019s	0.006s	5.028s
AVG	0.004s	5.620s	0.006s	5.630s

2 Nodes — 1600x1200

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	10.038s	0.403s	10.444s
2	0.003s	8.028s	0.359s	8.390s
3	0.003s	8.029s	0.392s	8.424s
4	0.003s	8.042s	0.431s	8.476s
5	0.003s	7.030s	0.354s	7.387s
AVG	0.003s	8.233s	0.387s	8.623s

4 Nodes — 3200x1200

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	11.051s	0.729s	11.783s
2	0.003s	9.048s	0.787s	9.838s
3	0.003s	9.050s	0.830s	9.883s
4	0.003s	9.046s	0.775s	9.824s
5	0.005s	9.050s	0.740s	9.795s
AVG	0.003s	9.449s	0.772s	10.224s

8 Nodes — 3200x2400

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.004s	16.087s	1.692s	17.783s
2	0.004s	15.090s	1.600s	16.694s
3	0.007s	16.110s	1.605s	17.722s
4	0.003s	14.079s	1.701s	15.783s
5	0.003s	13.082s	1.644s	14.729s
AVG	0.004s	14.889s	1.648s	16.541s

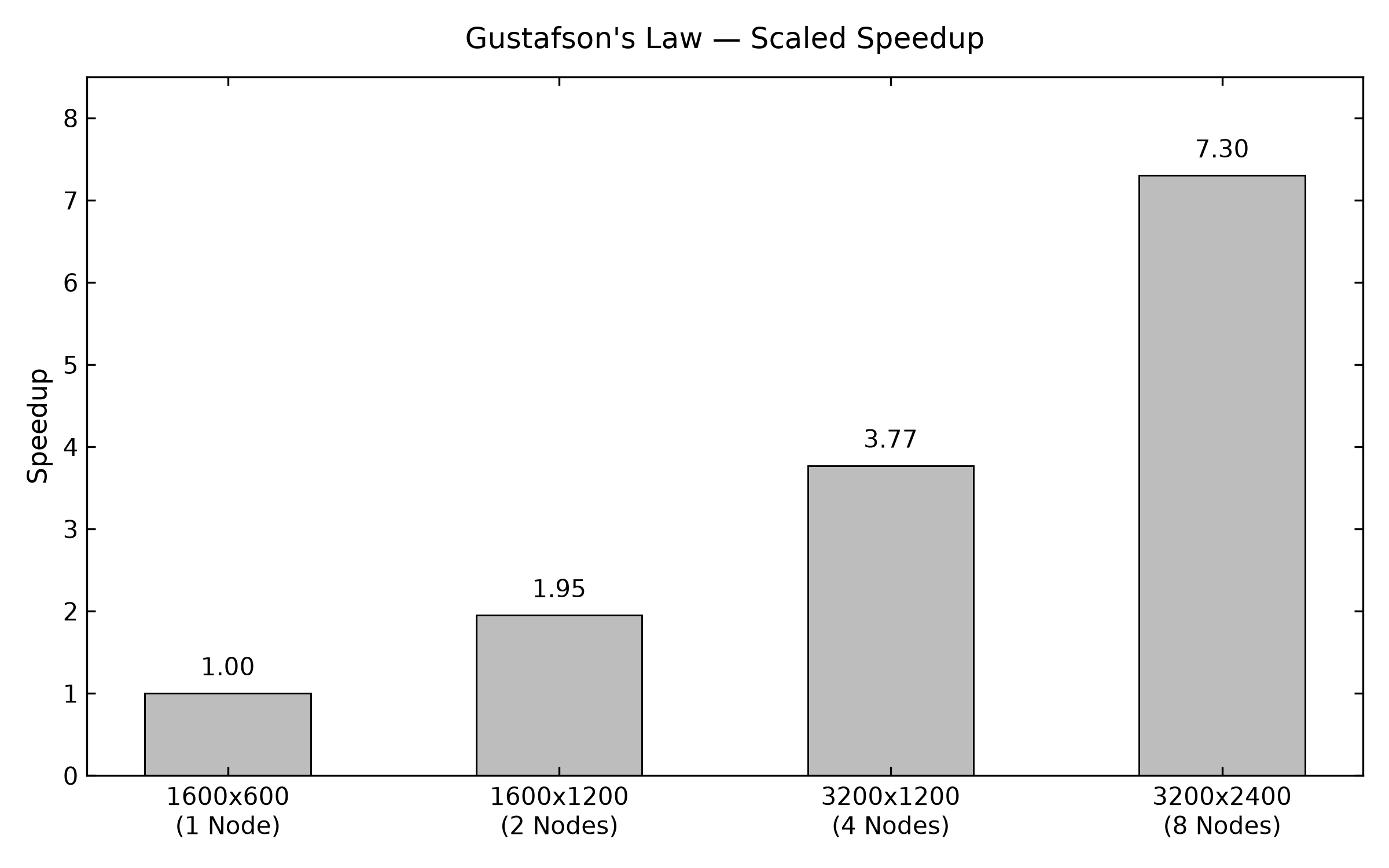

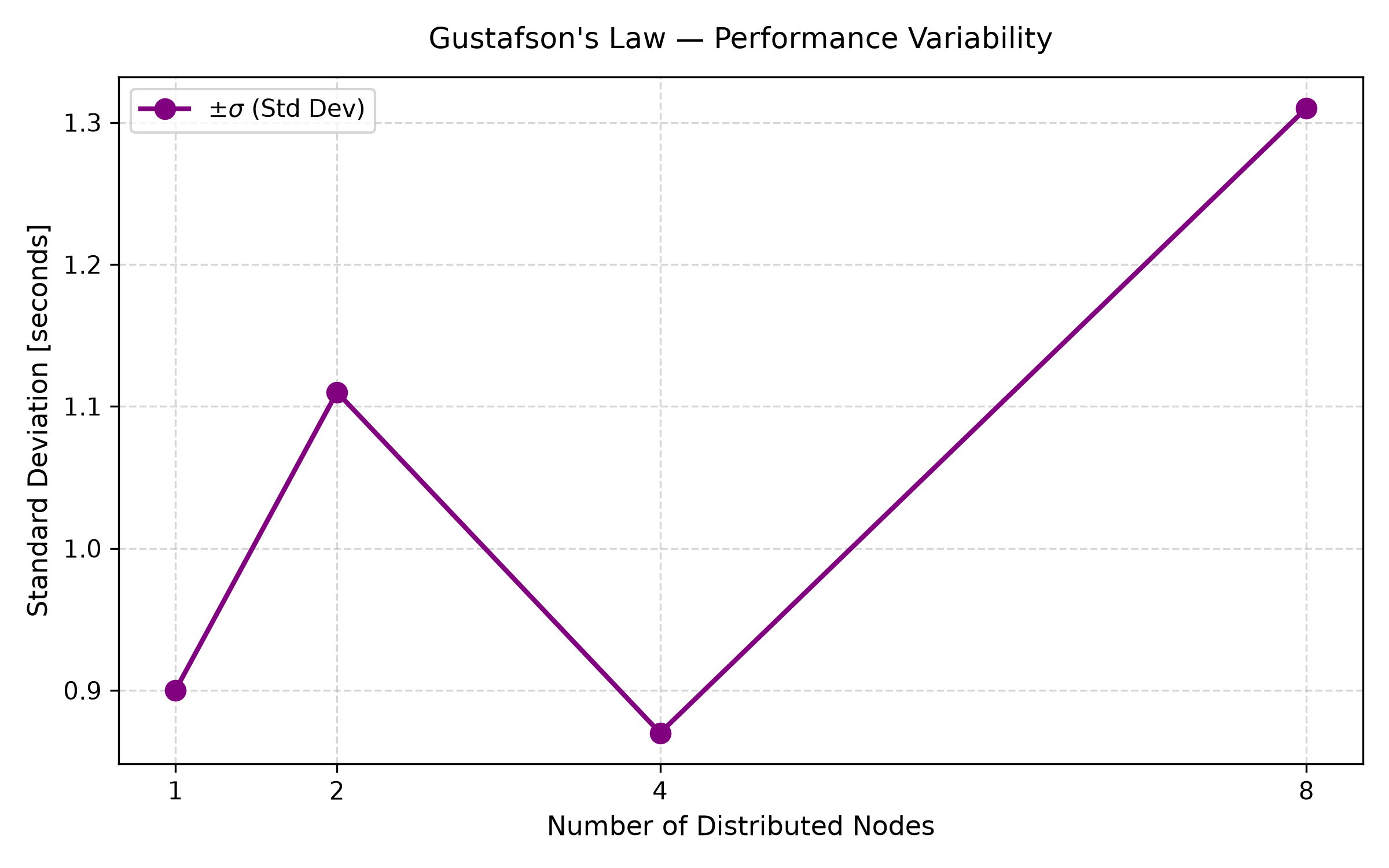

Gustafson's Law (Set 1) — Summary Table (Averages of 5 Runs)

Size	Nodes	Avg Seq 1	Avg Parallel	Avg Seq 2	Avg Total Time	Std Dev	Scaled Speedup	Efficiency
1600x600	1	0.004s	5.620s	0.006s	5.630s	±0.90s	1.00x	100%
1600x1200	2	0.003s	8.233s	0.387s	8.623s	±1.11s	1.95x	98%
3200x1200	4	0.003s	9.449s	0.772s	10.224s	±0.87s	3.77x	94%
3200x2400	8	0.004s	14.889s	1.648s	16.541s	±1.31s	7.30x	91%

Gustafson's Law (Set 1) — Graphs

Experiment 2: Gustafson's Law — 5 Runs x Workfload Set 2

1 Nodes — 3200x1200

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.005s	15.042s	0.006s	15.053s
2	0.004s	15.041s	0.004s	15.049s
3	0.003s	14.041s	0.007s	14.051s
4	0.004s	14.043s	0.004s	14.051s
5	0.004s	14.041s	0.004s	14.049s
AVG	0.004s	14.441s	0.005s	14.450s

2 Nodes — 3200x2400

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	27.088s	1.204s	28.295s
2	0.003s	30.085s	1.143s	31.231s
3	0.003s	27.075s	1.127s	28.205s
4	0.003s	27.078s	1.162s	28.243s
5	0.003s	27.085s	1.180s	28.268s
AVG	0.003s	27.682s	1.163s	28.848s

4 Nodes — 4800x2400

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	29.099s	1.631s	30.733s
2	0.002s	27.090s	1.630s	28.722s
3	0.002s	27.096s	1.654s	28.752s
4	0.002s	27.088s	1.700s	28.790s
5	0.003s	27.091s	1.661s	28.755s
AVG	0.002s	27.492s	1.655s	29.149s

8 Nodes — 6400x4800

Run	Seq Part 1	Parallel Part	Seq Part 2	Total Time
1	0.003s	166.535s	6.572s	173.110s
2	0.003s	92.357s	7.702s	100.062s
3	0.007s	119.410s	6.373s	125.790s
4	0.006s	89.370s	7.904s	97.280s
5	0.004s	182.602s	6.804s	189.410s
AVG	0.004s	130.054s	7.071s	137.129s

Gustafson's Law (Set 2) — Summary Table (Averages of 5 Runs)

Size	Nodes	Avg Seq 1	Avg Parallel	Avg Seq 2	Avg Total Time	Std Dev	Scaled Speedup	Efficiency
3200x1200	1	0.004s	14.441s	0.005s	14.450s	±0.55s	1.00x	100%
3200x2400	2	0.003s	27.682s	1.163s	28.848s	±1.33s	1.96x	98%
4800x2400	4	0.002s	27.492s	1.655s	29.149s	±0.89s	3.83x	96%
6400x4800	8	0.004s	130.054s	7.071s	137.129s	±42.19s	7.64x	95%

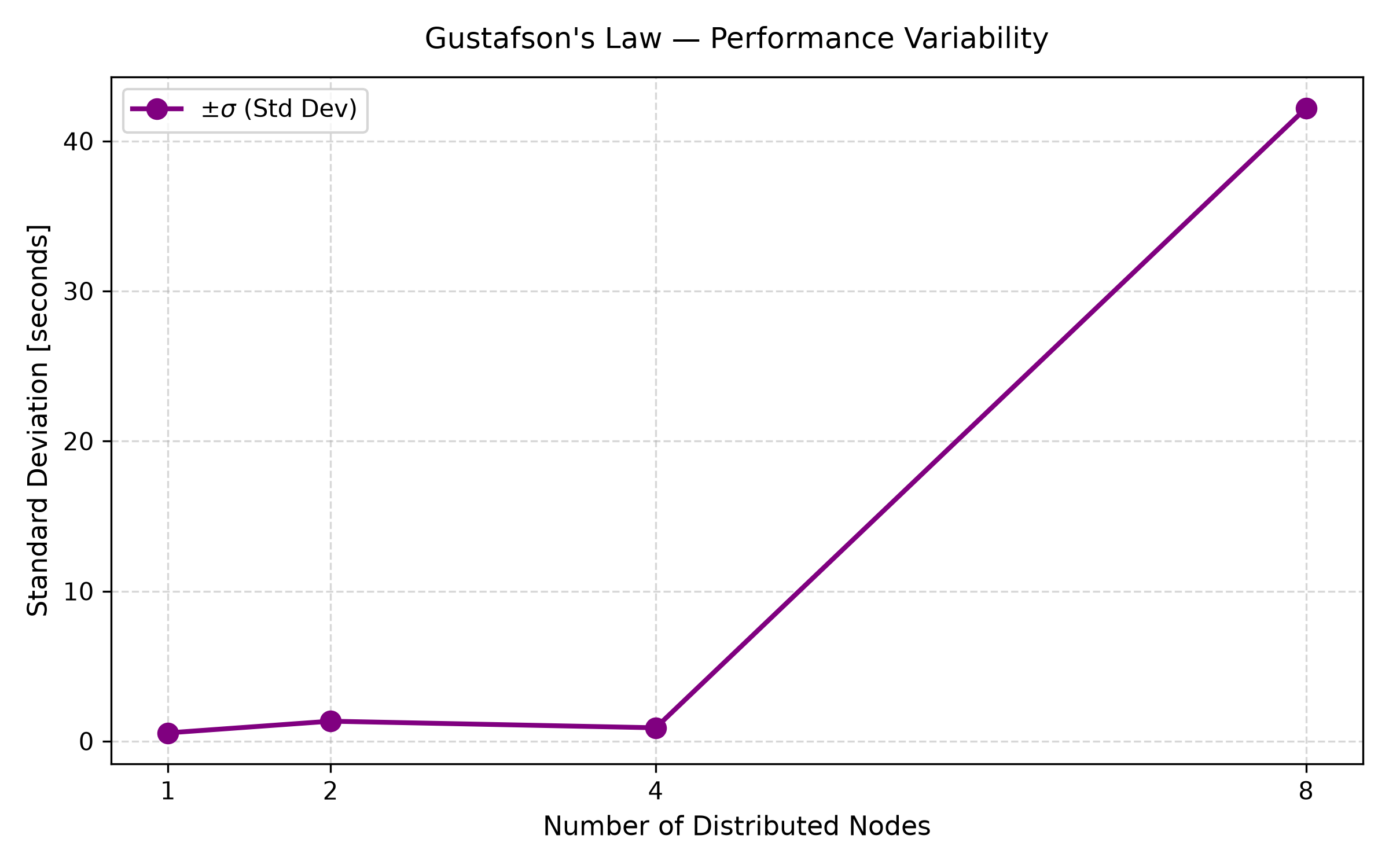

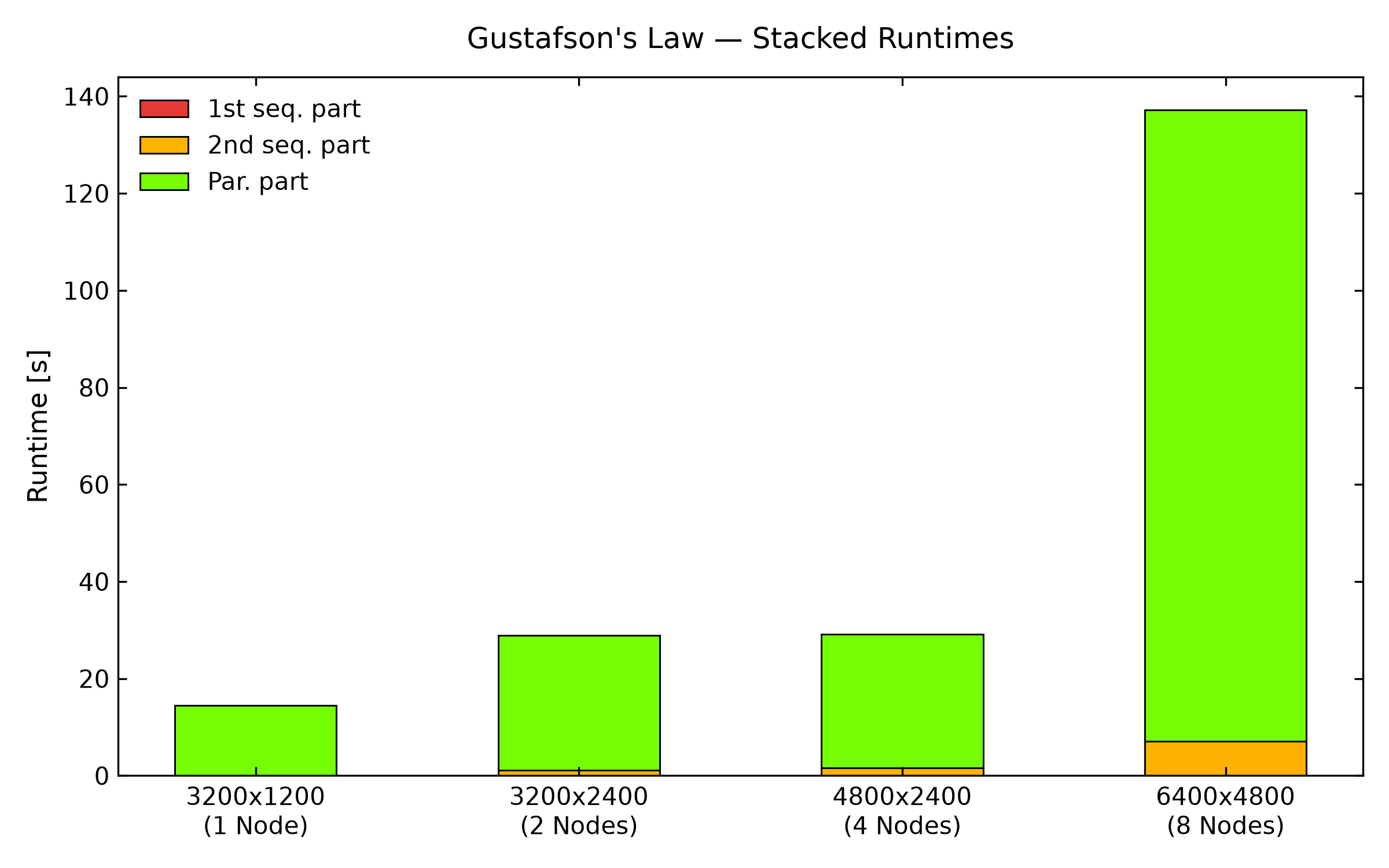

Gustafson's Law (Set 2) — Graphs

Key insight: Gustafson's Law is confirmed — as workload scales with node count, each node processes the same amount of data in approximately the same time, while total throughput scales nearly linearly with node count.

---

Combined conclusion: For small fixed tasks, parallelism overhead dominates (Amdahl). For large scalable tasks, distributed computing delivers near-linear throughput scaling (Gustafson). Both perspectives together give a complete picture of parallel computing on real hardware.

---

Troubleshooting Reference

Problem	Cause	Fix
ssh: No route to host	Workers not booted	Follow golden boot sequence
Could not resolve hostname pi110	Hardcoded hostnames in script	Update HOSTS_ARRAY in master script
lockfile already exists	Previous run failed	rm -f workspace_*/lockfile
Permission denied on workspace	Workers (pi user) can't write to cc123 folder	sudo chmod -R 777 /mnt/ssd/nfs/hpl-results/task-distributor/
convert: command not found	Wrong ImageMagick binary name	Use convert-im6.q16 on workers, convert-im7.q16 on master
Error opening terminal: unknown	POV-Ray needs TTY	Add TERM=dumb before povray command
No such file or directory: blob.png	POV-Ray not rendering	Check TERM=dumb and correct +I path
*pi*.png: No such file	Master looking for wrong filename	Worker writes IP.png not hostname.png
Workers write wrong name to lockfile	Script uses hostname	Change to hostname -I \| awk '{print $1}'

Issues and Fixes

Memory issues

These occur for larger image sizes 6400 x 4800 especially if the number of nodes are less. We added a storage space for workers for support via changes to task-distributor-worker. The script uses a storage space for each worker if the size exceeds 3200 x 2400. All the 6400 x H results were obtained after this updated.

Unordered composed image

Added a fix where the image composed of image cuts generated by worker hosts produce an unordered image

Failed runs

5400x2400 / 4 nodes

6400x2400 / 4 nodes

6400x2400 / 4 nodes
