Task 6 — Model Training & Deployment

Documentation for this task will be added as implementation progresses.

Objectives

  • Collect images for training and testing the object detection model.
  • Train a custom model using TensorFlow, OpenCV, or YOLO frameworks.
  • Optimize and compile the trained model for hardware-accelerated edge inference on the Raspberry Pi AI Camera (IMX500).

1. Data Preparation and Augmentation

A custom multi-class dataset was compiled using the Roboflow platform by fusing disparate image sets containing target classes. Preprocessing and structural augmentations were applied globally to improve generalization performance across edge deployments.

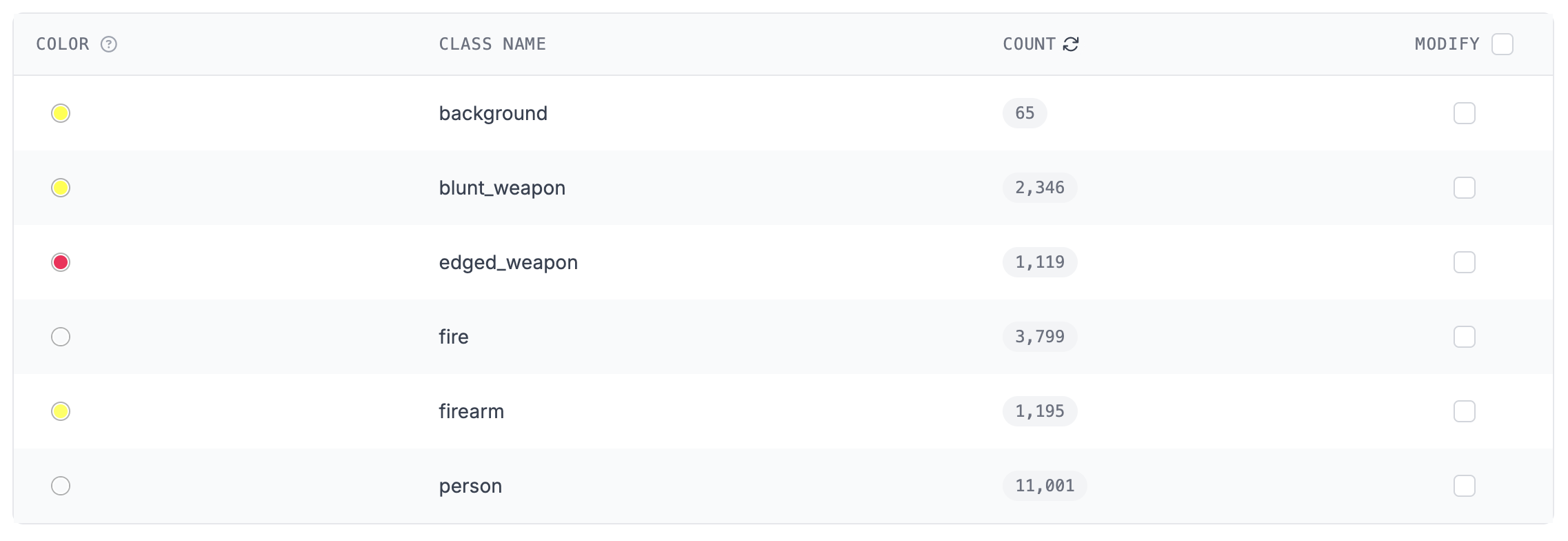

Dataset Class Distribution

2. Model Selection and Training Experiments

Two distinct architecture variants were chosen to find a pipeline compatible with the Raspberry Pi AI Camera's Sony IMX500 hardware constraints.

Evaluation Metrics Summary

Model Framework Layer Count Parameters GFLOPs Overall mAP50 Overall mAP50-95 IMX500 Compilation Status
YOLOv11n 101 2,583,322 6.3 0.883 0.653 Failed (Hardware Layer Incompatibility)
YOLOv8n 73 3,006,818 8.1 0.870 0.645 Successful (Validated through successful deployment)

Experiment 1: YOLOv11n (Roboflow & Kaggle)

Initial training was performed on a YOLOv11n architecture (yolo/yolo11n.py). While local optimization converged successfully, compilation to the native edge format failed during the hardware translation step.

YOLO11n summary (fused): 101 layers, 2,583,322 parameters, 0 gradients, 6.3 GFLOPs
Class          Images  Instances      Box(P          R      mAP50  mAP50-95)
all              2122       3870      0.869      0.809      0.883      0.653
background         13         13      0.718          1      0.962       0.94
blunt_weapon      341        412      0.938      0.838      0.921      0.736
edged_weapon      163        226      0.835      0.783       0.84      0.553
fire              507        815      0.903      0.769      0.874      0.525
firearm           162        214      0.919      0.804      0.886      0.627
person            922       2190        0.9      0.662      0.814      0.535

Roboflow Yollo11n

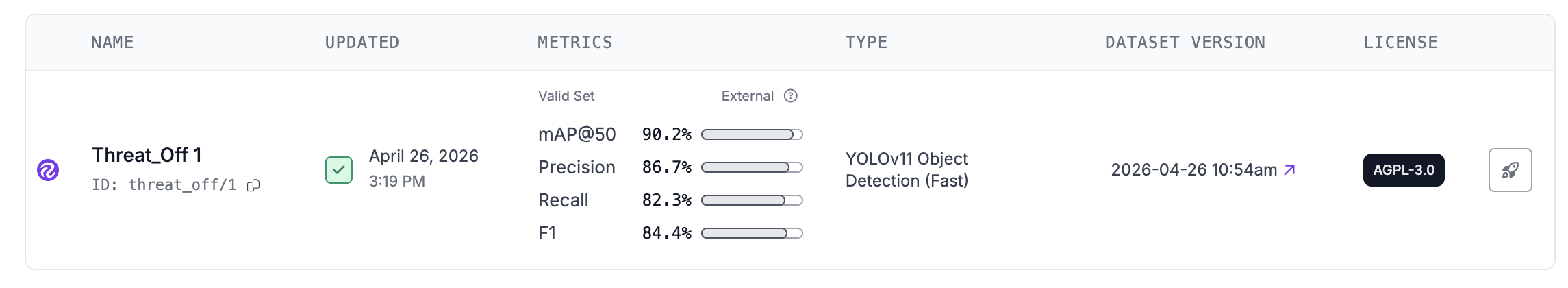

Roboflow Yollo11n Summary

Kaggle Yollo11n

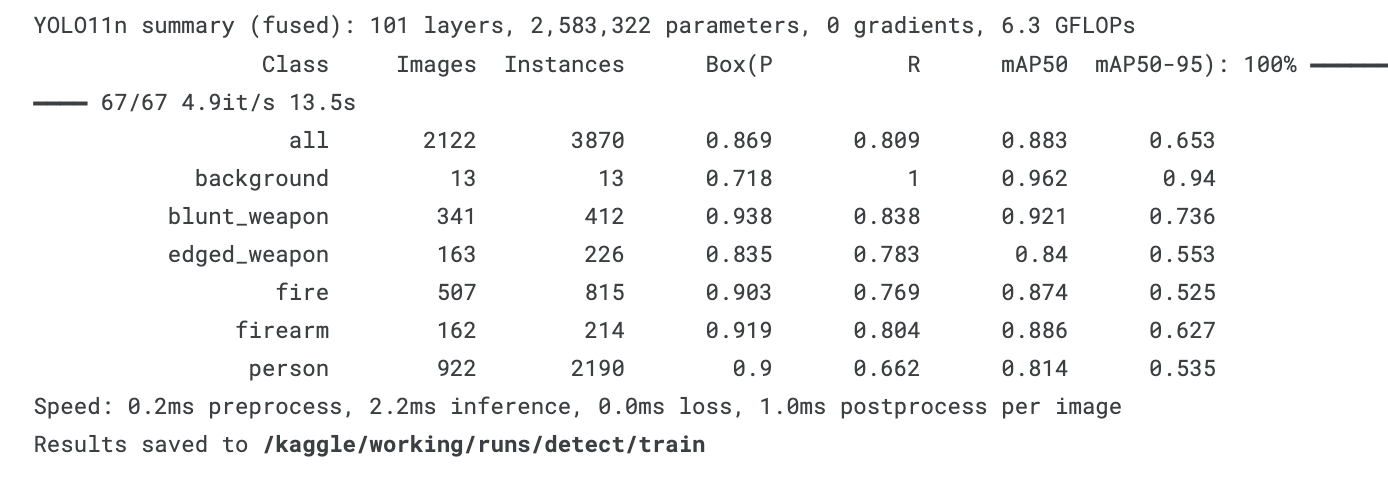

Kaggle Yollo11n Summary

To convert the resulting ONNX graph to the target hardware definition, the following command was executed in Kaggle:

imxconv-pt -i /kaggle/working/best.onnx -o /kaggle/working/sony_output --no-input-persistency

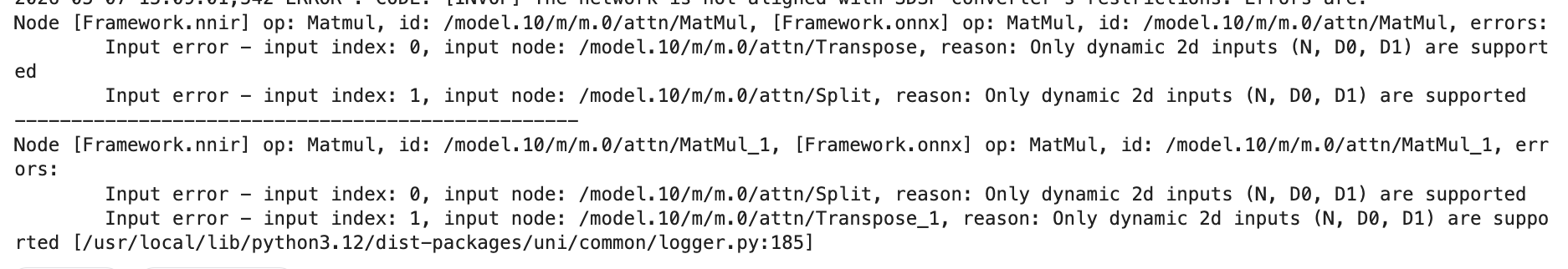

Result: Compilation failed. The YOLOv11n operations layer graph exceeded the complexity bounds supported by the IMX500 hardware compiler toolchain. Kaggle Yollo11n Summary

Experiment 2: YOLOv8n (Kaggle)

As a fallback, a legacy YOLOv8n architecture was trained using the same dataset (yolo/yolo8n.py). This architecture has mature toolchain support for the target edge processor.

YOLO8n summary (fused): 73 layers, 3,006,818 parameters, 0 gradients, 8.1 GFLOPs
Class          Images  Instances      Box(P          R      mAP50  mAP50-95)
all              2122       3870      0.858      0.808       0.87      0.645
background         13         13      0.753          1       0.98       0.98
blunt_weapon      341        412       0.91      0.856      0.916      0.735
edged_weapon      163        226      0.848      0.788       0.86      0.548
fire              507        815      0.891      0.776      0.849      0.502
firearm           162        214      0.902       0.82      0.889      0.649
person            922       2190      0.843      0.607      0.723      0.458

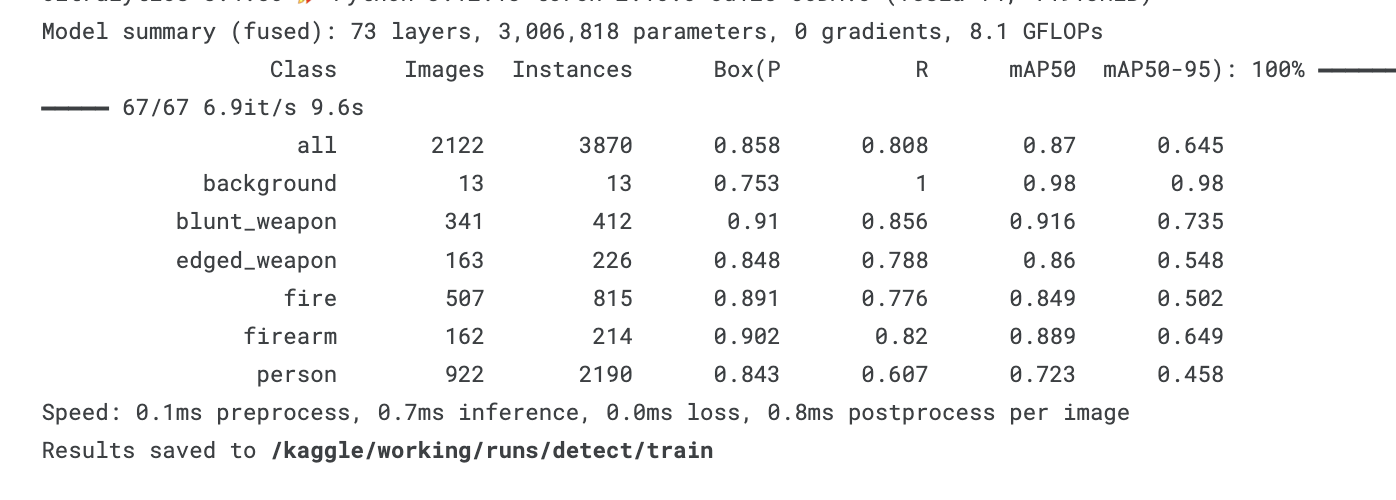

Kaggle Yollo11n Summary

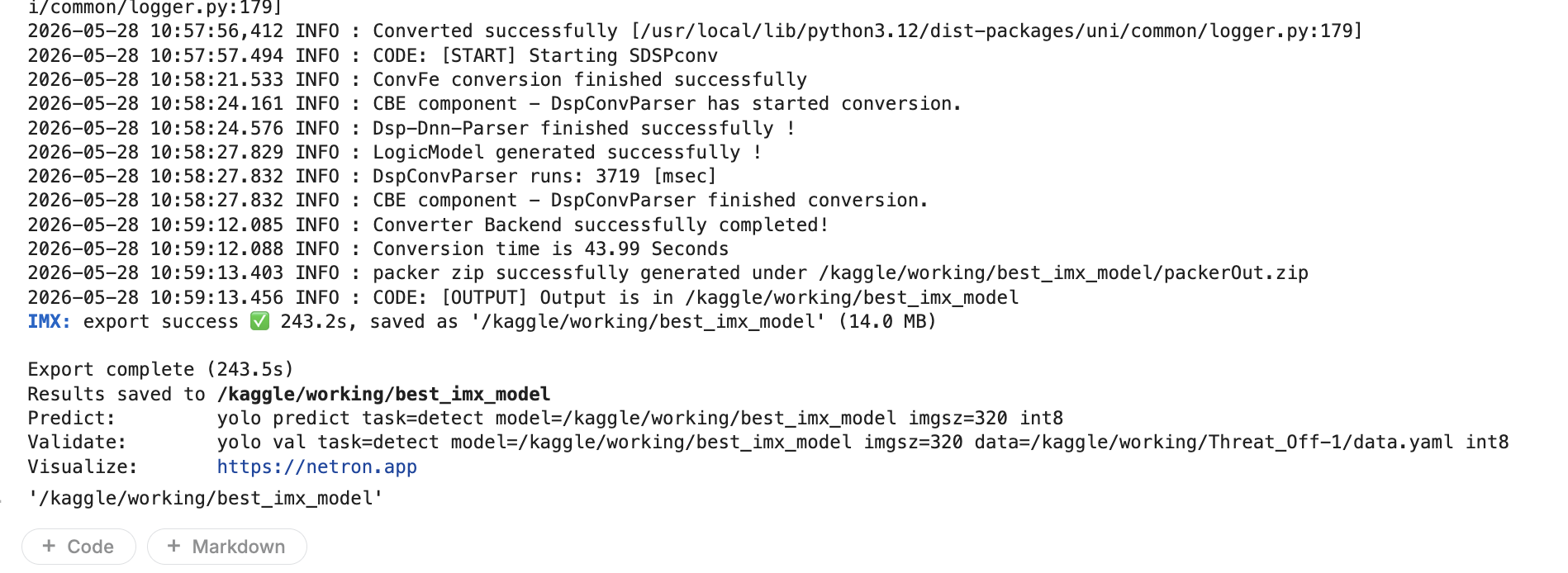

The conversion tool successfully translated the model into individual network hardware components (cfgA.bin, sdpsA.bin, manifest.json, etc.). Kaggle Yollo11n Conversion

Following is a performance heatmap for this model: Kaggle Yollo11n Performance

Experiment 3: YOLOv11n (Kaggle larger dataset ~30000 images)

To squeeze more performance from the Raspberry Pi 4 AI Camera, another model training was done using a different dataset.

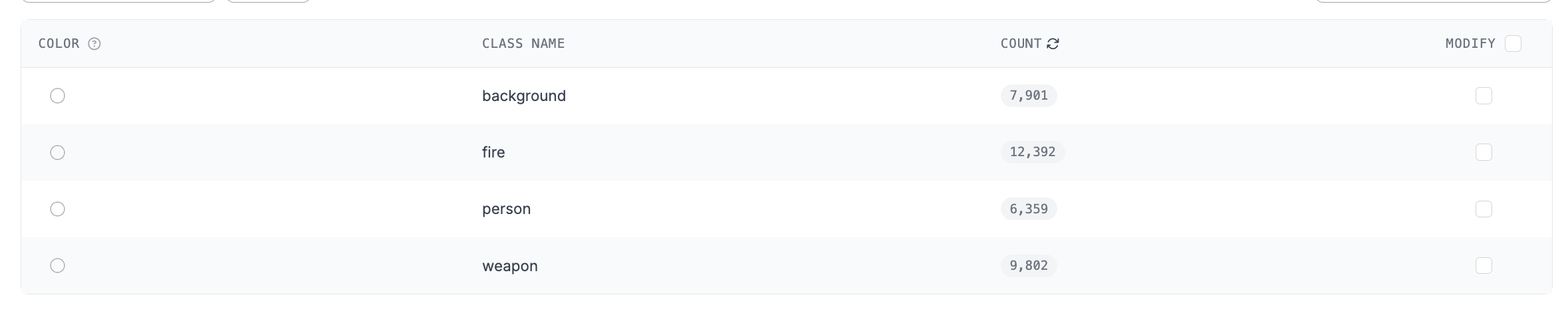

Dataset Class Distribution

YOLO8n summary (fused): 73 layers, 3,006,818 parameters, 0 gradients, 8.1 GFLOPs
Class          Images  Instances      Box(P          R      mAP50  mAP50-95)
all              3578       4652      0.894      0.797      0.868      0.687
background       1104       1609      0.882      0.769       0.86      0.764
fire              457        559       0.93      0.809       0.89      0.529
person            511        622       0.91      0.814       0.85      0.761
weapon           1472       1862      0.856      0.797      0.873      0.69

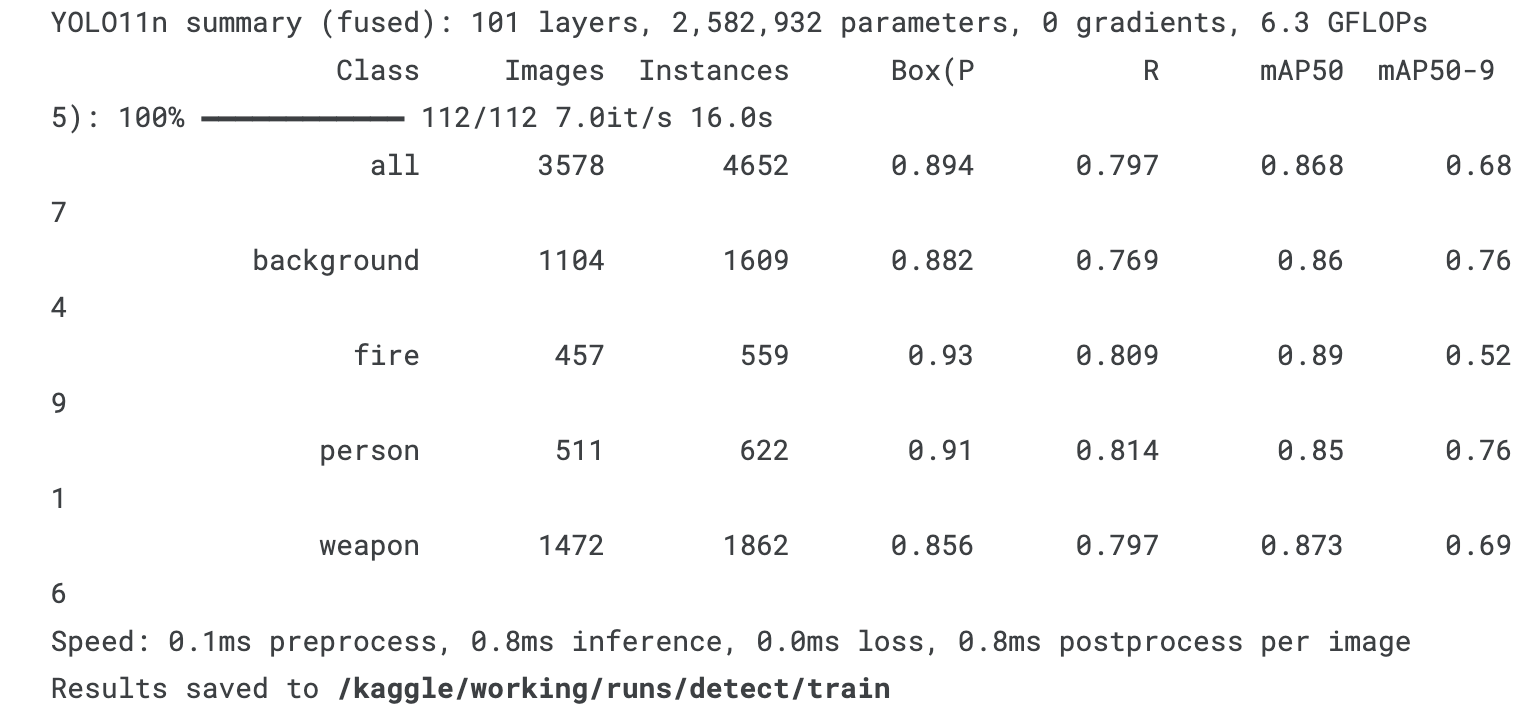

Kaggle Yollo12n Summary

Unfortunately due to time constraints, this was not converted and deployed to the edge node.

4. Edge Deployment Roadblocks and Solutions

During deployment on the Raspberry Pi 4 AI Camera edge node, several technical challenges were encountered and resolved.

File Container Mismatch

  • Problem: The Kaggle conversion pipeline generated an unpacked directory containing individual raw firmware components. The local runtime driver (libcamera) requires a unified, compiled .rpk (Raspberry Pi Package) container. Attempting to target the raw directory threw a driver ioctl fault: ERROR: *** failed to set network fw ioctl ***.
  • Solution: Compiling required the native tool imx500-package. Because standard Linux archiving utilities (zip) were missing on the offline edge device, a programmatic Python script using shutil.make_archive was executed to generate a valid packerOut.zip archive. This was then successfully processed by the compiler toolchain into network.rpk.

Packaging Automation Architecture Constraints

  • Problem: The imx500-package toolchain rejects raw folder arguments and strictly dictates compressed inputs passed to the -i parameter flag, raising End-of-central-directory signature not found when improperly pointed to flat files.
  • Solution: Input files were programmatically compressed into a root folder before passing the archive reference to the native toolchain script.

Truncated Automation Script

  • Problem: The automation utility sensor_node.sh was broken structurally, missing its terminating done keyword for the standard output parsing loop, and remained hardcoded to execute the default imx500_mobilenet_ssd.json asset.
  • Solution: The script was refactored with clean closure syntax and configured to ingest the custom imx500_yolo.json configuration block.

Hardware Pipeline Lockups

  • Problem: Halting testing routines abruptly left standard camera instances bound to the underlying V4L2 kernel subsystem driver, returning Device or resource busy or Pipeline handler in use by another process faults on subsequent executions.
  • Solution: Implemented a hardware reset routine utilizing a forceful process termination sequence: sudo pkill -9 -f rpicam-hello.
